AdBlue Emulator EURO 6 NOx installation manual for Volvo trucks (with retarder system)

AdBlue Emulator EURO 6 NOx is a device made to override SCR system on Volvo EURO 6 trucks. The manual that you’re now reading is for emulator installation only on Volvo EURO 6 trucks equipped with retarder system. You can use this emulator on Volvo EURO 6 trucks without the retarder system if you need the support for 2018 firmware versions of truck ECU. Incompatible with EURO 5 and trucks with lower EURO standards. Incompatible with vehicles made by other manufacturers.

We highly recommend you to delete all DTC (Diagnostic Trouble Codes) errors from OBD (On-Board Diagnostics) system before you proceed with the installation process. The best option is to use original Volvo 88890300 or any other compatible diagnostic scanner. If you noticed new DTC errors after installation, please recheck the system with the diagnostic scanner because there might be errors related to incorrect installation. For the safety reasons we highly recommend to start the installation by connecting a ground wire, it’s safer for the emulator and your truck.

AdBlue Emulator EURO 6 NOx installation

Please prepare the vehicle for the installation process by launching/activating the DPF regeneration before installing the emulator. You can make it with original Volvo 88890300 or any other compatible diagnostic device.

Now please examine this diagram carefully:

AdBlue Emulator EURO 6 for Volvo trucks with retarder (scheme 1)

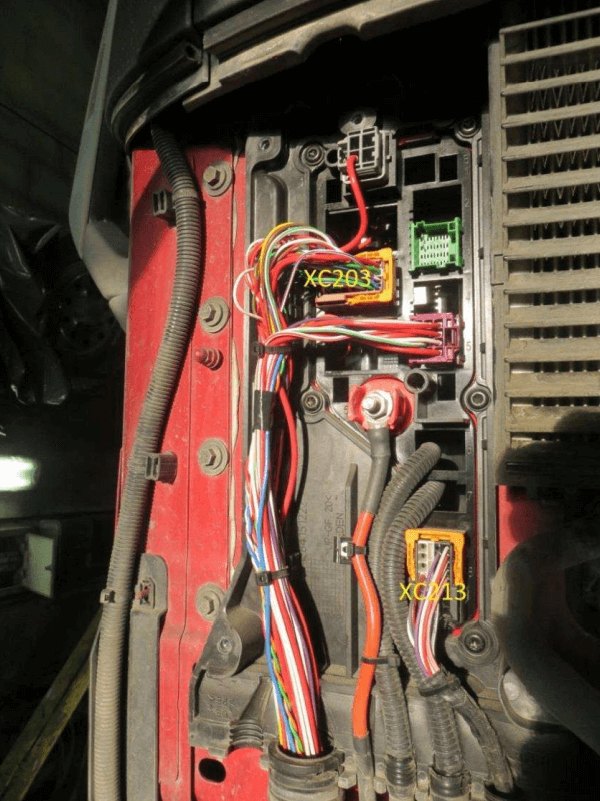

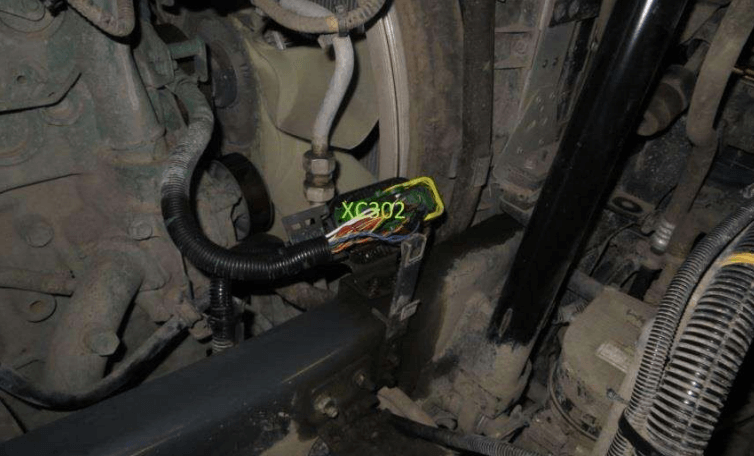

As you can see this diagram shows three connectors, you can find them easily by analyzing the photos provided below:

AdBlue Emulator EURO 6 for Volvo trucks with retarder (photo 1)
AdBlue Emulator EURO 6 for Volvo trucks with retarder (photo 2)

Step 1: XC213 wire connections

  • Turn off the ignition.
  • Locate the XC213 connector (photos above).
  • Connect the brown emulator wire (ground) to truck wire 1 (XC213 pin 1).

AdBlue Emulator EURO 6 for Volvo trucks with retarder (XC213 pins)

Step 2: XC203 wire connections

  • Locate the XC203 connector (photos above).
  • Connect the following wires in a particular way:
    1. Yellow emulator wire (CAN 1 High) to truck wire 7004 (XC203 pin 1)
    2. Green emulator wire (CAN 1 Low) to truck wire 7005 (XC203 pin 2)
    3. Red emulator wire (+) to truck wire 2020 (XC203 pin 26)

AdBlue Emulator EURO 6 for Volvo trucks with retarder (XC203 pins)

Step 3: XC302 wire connections

  • Locate the XC302 connector (photos above).
  • Connect the following wires in a particular way:
    1. Gray emulator wire (CAN 2 High) to truck wire 7038 (XC302 pin 34).
    2. Orange emulator wire (CAN 2 High) to truck wire 7039 pin 36).

AdBlue Emulator EURO 6 for Volvo trucks with retarder (XC302 pins)

Step 4: Cutting the CAN wires and NOx supply on SCR system

Please find the A174 connector (ACM connector) and cut both CAN wires (pin 1 and pin 5), also cut the wire on of pin 49 (NOx supply). You can see the ACM and CCIOM locations and cutting diagram shown on the pictures below:

AdBlue Emulator EURO 6 for Volvo trucks with retarder (ACM and CCIOM)

AdBlue Emulator EURO 6 for Volvo trucks with retarder (CAN and NOx)

Make sure you isolated all connections and cut wires firmly. Installation is done.
