The Tachograph Emulator designed to work as a replacement for tachograph in the vehicle where the tachograph is no more necessary, but other electronic modules require signals generated by the tachograph. The emulator generates following signals:
- V imp – pins B6, B7, D3
- 4 imp/m – pin B8
- Zero speed signal – D8
- Via CAN: vehicle speed, distance traveled, date and time – pins A4, A8
- Or via k-line: distance traveled, date and time – PIN D7
Tachograph Emulator shipped prepared for your vehicle (don’t forget to provide necessary data required for additional programming, we will prepare Tachograph Emulator for your truck, you’ll get it ready to install).
Technical data
All signals are compatible with ISO 16844-1 standard
Power supply | 12V or 24V |
---|---|
Current consumption | 40mA |
„k” factor setting range | 4000 ÷ 64000 imp/km |
Output power supply for speed sensor | 8V DC |
Working temperature range | –40°C ÷ +85°C |
Dimensions | 113 x 65 x 23 mm |
Connection

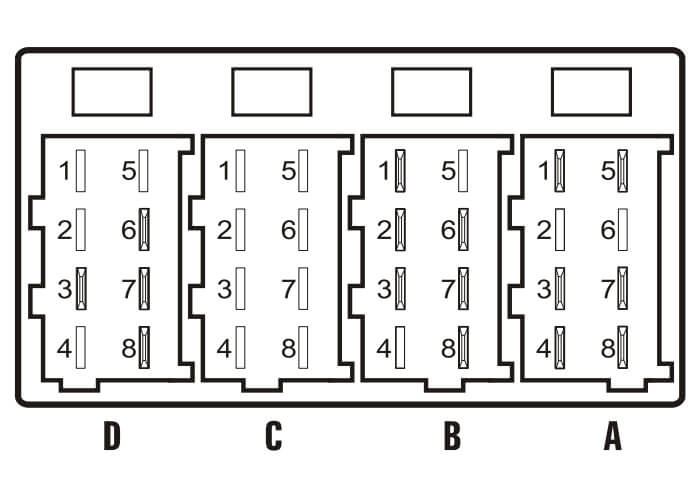

Plugs – A [white], B [yellow] and D [brown] should be connected to relevant sockets in the emulator.
SOCKET & PIN NUMBER | FUNCTION | ADDITIONAL INFO |
---|---|---|
A1 | Power from battery | [30] |
A3 | Ignition | [15] |
A4 | CAN H | |
A5 | Ground from battery | [31a] |
A7 | CAN GND | |
A8 | CAN L | |
B1 | Power supply output | [+] |
B2 | Power supply output | [-] |
B3 | Signal from speed sensor | |
B6 | V-impulse | |
B7 | V-impulse | |
B8 | 4 imp/m | |
D3 | V-impulse | |
D6 | V-impulse | |
D7 | K-line | |
D8 | Zero speed signal |
